Overview

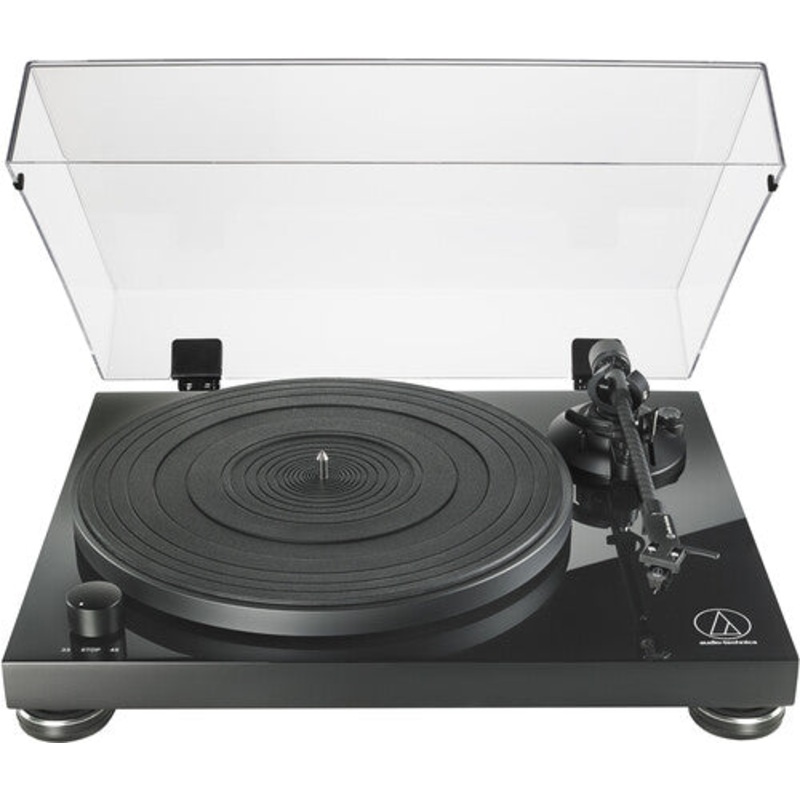

Audio-Technica AT-LPW50PB Fully Manual Belt-Drive Turntable Piano Black
The Audio-Technica AT-LPW50PB is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl.It features an anti-resonance 30 mm thick MDF (medium density fiberboard) plinth, with a high-gloss, piano-black finish, to dampen low-frequency acoustical feedback, and a sensor-monitored motor to ensure accurate platter rotation speeds of 33-1/3 and 45 RPM.The turntable includes a straight, matte-finish, carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal “-mount headshell with a black AT-VM95E Dual Moving Magnet phono cartridge (black). Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
The AT-LPW50PB is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.
Stunning Look, Stunning Sound
Marked by the high-gloss, piano-black finish of its anti-resonance plinth, the AT-LPW50PB offers sleek, modern styling to match the supreme accuracy of its sensor-monitored motor.
Designed for a Higher Level of Listening
The AT-LPW50PB is equipped with a straight, matte-finish, carbon-fiber tonearm and comes with an AT-HS4 universal -mount headshell and a special black version of the versatile AT-VM95E Dual Moving Magnet phono cartridge.
Over 55 Years of Analog Excellence
We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-centurys worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.
In The Box
- Audio-Technica Consumer AT-LPW50PB Fully Manual Two-Speed Stereo Turntable
- Audio-Technica Consumer AT-HS4 Universal 1/2″ Mount Headshell (Black)
- Audio-Technica Consumer AT-VMN95EBK Replacement Stylus for AT-VM95E Cartridge (Black)
- 3.3′ Stereo RCA Audio Cable with Ground Wire
- 45 rpm Adapter
- Counterweight
- Platter with Drive Belt
- Rubber Turntable Mat
- 4.9′ AC Power Adapter
- Dust Cover with Hinges
- Limited 1-Year Warranty
Specs
| Motor | DC Servo |
| Drive Method | Belt-Drive |
| Speeds | 33 1/3, 45 rpm |
| Tonearm Type | Straight, Carbon Fiber, Static-Balanced |
| Effective Tonearm Length | 8.8″ / 223.6 mm |
| Overhang | 0.73″ / 18.6 mm |
| Tracking Error Angle | <2 |
| Cartridge Weight | Applicable: 12 to 17 g |
| Stylus Pressure Adjustment | 0 to 3 g |
| Replacement Stylus | AT-VMN95E BK |
| Cartridge Type | VM |
| Recommended Load Impedance | 47 Kilohms |
| Stylus | 0.3 x 0.7 mil Bonded Elliptical |
| Stylus Cantilever | Aluminum Pipe |
| Signal to Noise Ratio | >60 dB |
| Tracking Force | 1.8 to 2.2 g |
| Cartridge Weight | 0.22 oz / 6.1 g |
| Headshell | Model: AT-HS4 BK Weight: 8.5 g Excluding Lead Wires Mount: 1/2″ |
| Overhang | Headshell Adjustment: 5 mm |
| Wow and Flutter | 33 rpm: <0.15% WRMS @ 3 kHz |
| Connectors | 1 x Stereo RCA Pair with Ground Screw |
| Gain | Phono Preamp: 35 dB Nominal, RIAA Equalized |
| Output Level | Phono: 4 mV Nominal at 1 kHz, 5 cm/sec Line: 200 mV Nominal at 1 kHz, 5 cm/sec |
| Turntable Platter | Die-Cast Aluminum |
| Power Requirements | 100 to 240 VAC, 50/60 Hz, 0.5 A Max |
| Power Consumption | Operational: 1.3 W @ 110 VAC, 60 Hz Motor Off: 1 W @ 110 VAC, 60 Hz Power Off: 0.1 W @ 110 VAC, 60 Hz |
| Dimensions | With Dustcover: 16.54 x 4.96 x 14.02″ / 420 x 126 x 356 mm Without Dustcover: 16.54 x 4.49 x 14.02″ / 420 x 114 x 356 mm |
| Weight | 12.26 lb / 5.56 kg without Dustcover |
Packaging Info
| Package Weight | 13.5 lb |
| Box Dimensions (LxWxH) | 19.5 x 16.5 x 7.7″ |
